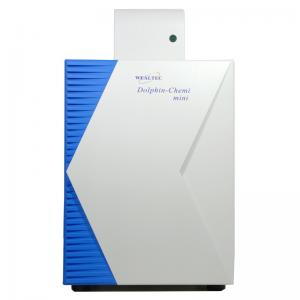

Dolphin-Chemi mini, a compact image system equipped with most advance Peltier-cooled 16-bit CCD camera and periscopic lens, is ideal for detecting the weakest signal generated by the luminal chemical reaction. Designed with the lightproof darkroom with two position sample stage provides a perfect environment for image capturing. Upon capturing the image, Wealtec’s Dolphin 1D software serves as a best platform for data acquisition and analyzing. Within maximum 10 hours exposure through 10 accumulations, users have the options to choose the best image for different exposure time through computer without the need of using X-ray film.
| 相机 | |
| 传感器尺寸（mm） | 8.8×6.45 |
| 传感器 | 2/3" |
| 像素大小（um） | 6.45×6.45 |
| 灰阶 | 65536阶 |
| 分辨率 | 1360×1024（~1.4M） |
| 像素密度 | 16 bit |
| 信噪比 | >69 dB |
| 动力学范围 | 4 TEC |
| 冷却系统 | 致冷芯片；低于室温-30度 |
| 镜头 | 0.95/17 mm |
| 滤光片 | 琥珀色滤光片和近距离镜头 |
| 控制界面 | IEEE 1394火线 |
| 硬件和软件 | |
| 尺寸（L×W×H） | 35.0×31.0×61.1 cm |
| 电源 | 120/230 V; 50-60 Hz |
| 重量（kg） | 20 |
| 图像采集 | USB 2.0 |
| 全开门 | 是 |
| 拖曳结构 | 是 |
| 门**开关 | 是 |
| 电脑分析软件 | Dolphin-1D 分析软件 |
