瞬态吸收光谱 2DQuick Array

参考信息

-----------以下"瞬态吸收光谱 2DQuick Array"相关信息来自网络,仅供参考不作购买下单依据------------

型号：2DQuick Array

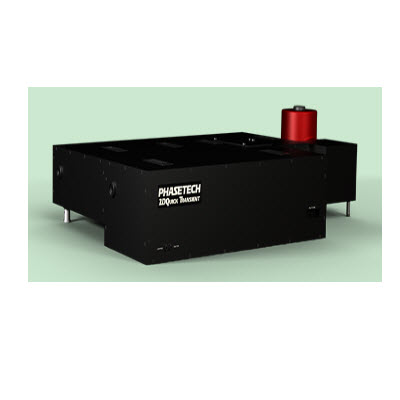

FAST & POWERFUL 2D IR SPECTROMETER

The 2DQuick Array combines the control of a mid-IR pulse shaper with the speed of an array detector for our most powerful 2D IR spectrometer yet.

产品概述和特点

? CAPABILITIES & FEATURES?      Measure mid-IR pump-probe kinetics?      Design custom pulse sequences?      Complete control and transient data acquisition soft- ware package?      Reference beam for background correction and greater signal-to-noise with dual-channel detectors?      Capatible with our Transient actinic pulse delay moduleGENERAL重复频率Repetition Rate≤ 100 kHz 峰值输出能量Recommended Pulse Energy≥ 5 μJ输入偏振Input PolarizationLinear, Horizontal输入光束大小Input Beam Size (1/e^2)7 mm, collimatedPump-Probe Delay> 40 psDIMENSIONSBase Dimensions16.0 x 39.2 x 8.0 in(40.6 x 99.5 x 6.4 cm)With Monochromator & Detectorapprox. 56 x 20 x 9 in(approx. 151 x 52 x 23 cm) (other monochromator and detector options are also available)SHAPERStandard AR Coating3.0 - 12.0 μm (833 - 3333 1/cm)(other wavelength ranges are available upon request) Spectral Window11.5 μm at 5.5 μmSpectral Resolution15 1/cm at 5.5 μmMaximum Double Pulse Delay2> 6 ps1 at 5.5 μm

?

?

?

?

MANY APPLICATIONS

	MOLECULAR STRUCTURE & DYNAMICS		PROTEIN STRUCTURE & DYNAMICS
	REAL-TIME KINETICS		MATERIALS SCIENCE
	MOLECULAR INTERACTIONS		MOLECULAR INTERACTIONS

-----------以上信息仅供参考不作为下单依据------------
如果您需要瞬态吸收光谱 2DQuick Array的 【产品详细描述】、【产品资质证件】、【技术参数】、【产品宣传彩页】，请至电400-034-1688主动索取！

产品彩页

瞬态吸收光谱 2DQuick Array彩页仅供寰熙会员浏览，非会员请至电400-034-1688 索取。
